Experiment 2 - NMR Spectroscopy

Objective

•
to understand the important role of nuclear magnetic resonance spectroscopy in the study of the structures of organic compounds
•
to develop an understanding of the significance of the number, positions, intensities, and splitting of signals in nuclear magnetic resonance spectra
•
to be able to assign structures to simple molecules on the basis of nuclear magnetic resonance spectra

Introduction

Spectroscopic methods are one of the more useful ways of structure determination in Organic Chemistry. Usually, one will do a combination of several methods in order to elucidate the structure. Three types that one commonly encounters in organic chemistry are Nuclear Magnetic Resonance (NMR), Infrared (IR), and Mass Spectral (MS) analysis. Infrared spectroscopy was introduced in the first semester organic lab. As the name implies Nuclear Magnetic Resonance Spectroscopy involves applying an external magnetic field to bring the nucleus of certain atoms (¹H or ¹³C) into resonance (equilibrium between a ground and an excited state). In each case, all the nuclei being either hydrogen or carbon will resonate at the same effective field strength, but depending on the environment, the applied field strength may differ. For example, in a video game, it may take one hit to liquidate the villain (effective); however, depending on the environment (buildings, woods, etc.), one may have to apply more "shots" to produce this one effective hit. In the plot produced by the spectrometer, the applied field (or a percentage of it) is plotted against the absorption (the intensity). There are four important outcomes that we shall consider for ¹HNMR.

The Number of Signals Present

The number of signals will give an indication of the number of different types of hydrogens that are present. Protons in the same environment are chemically equivalent and will resonate at the same applied strength. Those in a different environment will require a different applied field and therefore will appear at a different position in the spectrum. Examples:

CH - 1 signal, all H's are in the same environment.
CH₃CH₃ - 1 signal, all H's are in the same environment.
CH₃CH₂CH₃ - 2 signals, the two sets of CH₃ hydrogens are in the same environment, but are different from the CH₂ hydrogens.
CH₃-C=O OCH₃ - 2 signals, the two CH₃ groups are in different environments. One is attached to the C=O, and the other is attached to oxygen.

The Position of the Signal: Chemical Shift

The shift (chemical shift) is the exact place on the chart where the nucleus absorbs. Shifts are measured in parts per million (ppm), i.e., a percentage of the applied magnetic field. A typical ¹H NMR scale is from 0 to 14 ppm, and in most cases, an internal standard (tetramethylsilane, TMS) is added and is used as the zero reference point. The chemical shift is dependent on the environment (what neighboring nuclei are present) of the hydrogen(s) in question. The nucleus of the hydrogen atom is shielded by the electron that is present, and the neighboring nuclei can either reinforce this shielding or oppose this shielding (deshielding). If the shielding is reinforced (as in the case of a neighboring hydrocarbon residue), a higher applied magnetic field is needed and the resonance will appear at lower ppm (upfield). If an electronegative element (halogen, oxygen), or an electron withdrawing group (C=O, Ar, C=C) is adjacent, then the shielding is lessened (deshielding occurs) and the resonance will appear at higher ppm (downfield). See the table inside the back cover for positions. How many signals would one expect in ethanol? What would be the shift of each?

CH₃CH₂OH has 3 signals:		one for H's of CH₃ @ between 1 and 1.5 ppm
		one for H's of CH₂ (next to oxygen-deshielded) @ ~3.5 ppm
		one for H of OH (attached directly to oxygen; slightly different
		influence) @ 1 - 4 ppm (actually 4 ppm in this case)

Intensity of Signal: Integration of Peak Area

The NMR gives us the ability to calculate the area under the signal. This area is proportional to the number of H's that are responsible for that signal. It will provide a relative ratio of each type of hydrogen that is present in the molecule. Let the smallest integral be 1 and measure all others relative to this. In the event of a 1/2 fraction, multiply all by 2, since ratio should be whole numbers, i.e., a 1:1.5 ratio is 2:3. In the case of the ethanol molecule, integration would show a ratio of 1:2:3.

Splitting of the Signal into Several Peaks: Spin-Spin Splitting

This is a powerful tool in deducing the ¹HNMR spectra. The neighboring hydrogen nuclei (on an atom adjacent to the one in question) will cause the signal to split. Two things one should consider when examining spin-spin splitting are: Chemically equivalent hydrogen nuclei do not cause splitting to occur, whether they are on the same carbon or a different one.

Figure 1: All three H's are equilvalent; therefore, no splitting

Figure 2: All 6 H's are chemically equilvalent; therefore, no splitting

The signal for a hydrogen nuclei that has n equivalent neighboring H's (on adjacent atoms) is split into n + 1 peaks.

# of neighbors peaks
0 1 (singlet)
1 2 (doublet)
2 3 (triplet)
3 4 (quartet)
n n + 1 (multiplet)

Procedure

View the Proton NMR Interpretation video that shows you how to interpret an NMR spectrum step by step.

In-Lab Questions

Download and print the following worksheet. You will use this worksheet to record your answers to the In-Lab questions.

Part 1: Interpretation of Spectra

Question 1: Draw the structural formulas of the following compounds and indicate the number of NMR signals that would be expected for each compound.

a
methyl iodide
b
2,4-dimethylpentane
c
cyclopentane
d
propylene (propene)

Question 2: Draw the structural formula of the compounds that are indicated by the following data:

a
an alkyl halide with a molecular formula of C₃H₇Cl whose NMR spectrum contains two signals: a doublet (6H), and a multiplet (1H).
b
a compound with molecular formula C₇H₁₄Cl₂ whose NMR spectra contains three signals: a singlet (9H), a triplet (3H), and a quartet (2H).

Question 3: Figures 3-7 are representative spectra of compounds. Based on the NMR spectra shown, please provide a reasonable structure for each compound.

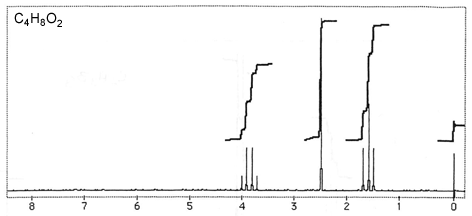

Figure 3

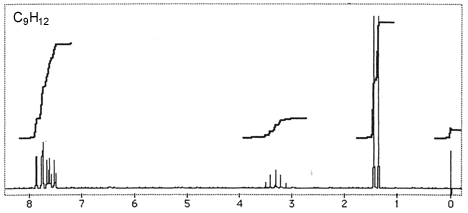

Figure 4

Figure 5

Figure 6

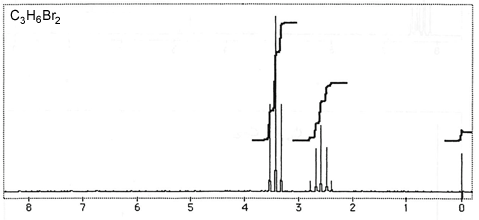

Figure 7

Part 2: Distinguishing between isomers using ¹H NMR Spectroscopy

Identification of an unknown sample

Students will identify an unknown compound (A-D) by obtaining and interpreting a ¹H NMR spectrum of the sample using the Magritek Spinsolve 60 NMR instrument. Each sample A-D has the chemical formula C₄H₉Br.

Question 4: Draw the four structural isomers for C₄H₉Br.

Question 5: Predict and sketch the predicted ¹H NMR spectrum for each of the isomers and include the integration, splitting and chemical shift range. Draw the isomer beside each spectrum.

Figure 8

Figure 9

Figure 10

Figure 11

NMR Instructions

The unknown NMR samples have already been prepared for you to obtain the NMR spectra. All four compounds are liquids at room temperature. The 1D proton spectra of neat samples will be obtained on the Spinsolve 60 for this experiment.

1
Pick a sample A-D, record the letter of your unknown and run a 1D Proton of the unknown sample on the Spinsolve 60.
2
Email the data to yourself and process the NMR spectra using Spinsolve. Integrate the peaks and click pick peak to list the chemical shift. You can also use the cursor to determine the distance between the peaks in a multiplet.
3
Label the spectrum and save the processed data.
4
The integrals are reported as a range. The average of the range is the chemical shift. The J-coupling can be determined by measuring the distance between peaks of a multiplet in ppm and then converted to Hertz by multiplying by the spectrometer frequency, 60.0 MHz.

J-Coupling = Difference (ppm) × Spectrometer Frequency (MHz)

Safety

All safety precautions should be taken with unknowns. Some of the unknowns used are flammable and/or corrosive. Keep away from sources of ignition. May cause skin and eye damage. Gloves and eye protection should be worn.

Question 7: Record your unknown sample letter and record the chemical shift, integration value, multiplicity, and coupling constant in the table. Unknown: __________

Chemical Shift (δ)	Integration (# of H's)	Multiplicity	Coupling Constant

Question 8: Draw the structure for your unknown.

# of neighbors		peaks
0		1 (singlet)
1		2 (doublet)
2		3 (triplet)
3		4 (quartet)
n		n + 1 (multiplet)
