Lab 3 - Newton's Second Law

Introduction

Sir Isaac Newton put forth many important ideas in his famous book The Principia. His three laws of motion are the best known of these. The first law seems to be at odds with our everyday experience. Newton's first law states that any object at rest that is not acted upon by outside forces will remain at rest, and that any object in motion not acted upon by outside forces will continue its motion in a straight line at a constant velocity. If we roll a ball across the floor, we know that it will eventually come to a stop, seemingly contradicting the First Law. Our experience seems to agree with Aristotle's idea, that the "impetus" given to the ball is used up as it rolls. But Aristotle was wrong, as is our first impression of the ball's motion. The key is that the ball does experience an outside force, i.e., friction, as it rolls across the floor. This force causes the ball to decelerate (that is, it has a "negative" acceleration). According to Newton's second law an object will accelerate in the direction of the net force. Since the force of friction is opposite to the direction of travel, this acceleration causes the object to slow its forward motion, and eventually stop. The purpose of this laboratory exercise is to verify Newton's second law.

Discussion of Principles

Newton's second law in vector form is
( 1 )
F
= ma or Fnet = ma
This force causes the ball rolling on the floor to decelerate (that is, it has a "negative" acceleration). According to Newton's second law an object will accelerate in the direction of the net force. If
F
is the magnitude of the net force, and if
m
is the mass of the object, then the acceleration is given by
( 2 )
a =
F
m

Since the force of friction is in the opposite direction to the direction of motion, this acceleration causes the object to slow its forward motion, and eventually stop. Notice that Eq. (1)
F
= ma or Fnet = ma
 and Eq. (2)
a =
F
m

 are written in vector form. This means that Newton's second law holds true in all directions. You can always break up the forces and the resultant acceleration into their respective components in the
x
y
and
z
directions.
( 3 )
Fnet,x = max
( 4 )
Fnet,y = may
( 5 )
Fnet,z = maz
Consider a cart on a low-friction track as shown in Fig. 1. A light string is attached to the cart and passes over a pulley at the end of the track and a second mass is attached to the end of this string. The weight of the hanging mass provides tension in the string, which helps to accelerate the cart along the track. A small frictional force will resist this motion. We assume that the string is massless (or of negligible mass) and there is no friction between the string and the pulley. Therefore the tension in the string will be the same at all points along the string. This results in both masses having the same magnitude of acceleration but the direction of the acceleration will be different. The cart will accelerate to the right while hanging mass will accelerate in the downward direction as shown in Fig. 1.
Figure 1

Figure 1: Two Mass System

The free-body diagrams for the two masses are shown in Fig. 2. Let's look at the forces acting on each mass.
Figure 2

Figure 2: Free-body diagrams for the two masses

For the falling mass
m1
there are no forces acting in the horizontal direction. In the vertical direction it is pulled downward by gravity giving the object weight,
W = m1g
and upward by the tension
T
in the string. See Fig. 2b. Thus Newton's second law applied to the falling mass in the
y
direction will be
( 6 )
Fnet,1 = m1gT = m1a
where the downward direction has been chosen to be positive. Figure 2a shows the forces acting on
m2
There is no motion of the cart in the vertical direction. Therefore the net force in the vertical direction will be zero, as will the acceleration. In the horizontal direction, the tension in the string acts in the +x direction on the cart while the friction force between the cart's tires and the surface of the track acts in the –x direction. Newton's second law, in the
x
and
y
directions, respectively, are
( 7 )
Fnet,2x = Tf = m2a
( 8 )
Fnet,2y = FNm2g = 0
Since the cart and the hanging mass are connected by the string, which does not stretch, both accelerations appearing in Eq. (6)
Fnet,1 = m1gT = m1a
 and Eq. (7)
Fnet,2x = Tf = m2a
 represent the same physical qualities. The tensions are the same due to Newton's third law. Combine Eq. (6)
Fnet,1 = m1gT = m1a
 and Eq. (7)
Fnet,2x = Tf = m2a
 to eliminate
T
( 9 )
m1g = (m1 + m2)a + f
Note that Eq. (9)
m1g = (m1 + m2)a + f
 has the form of a linear equation
y = mx + b
where m is the slope and b is the y-intercept.

Objective

The objective of this experiment is to verify the validity of Newton's second law, which states that the net force acting on an object is directly proportional to its acceleration. Eq. (9)
m1g = (m1 + m2)a + f
 was derived on the basis of this law. Therefore we can consider Eq. (9) to be a prediction of the second law. In this experiment we will seek to verify this specific prediction and thereby provide evidence for the validity of the second law.

Equipment

  • Low-friction track with pulley
  • Cart
  • String
  • Balance
  • DataStudio software
  • Two photogates
  • Assorted masses
  • Weight hanger
  • Signal Interface
  • Computer

Procedure

PDF file

You will conduct several trials, keeping the total mass
M = m1 + m2
constant while varying
m1
and therefore
m2
to obtain a different value of
a
for each value of
m1
By graphing
a
versus
m1g
you will be able to find
M
, the total mass of the system from Eq. (9)
m1g = (m1 + m2)a + f
.
The cart has an attached metal flag that will cause two photogates placed a fixed distance apart to react as the cart passes through them. A computer connected to the photogate will measure and display the time intervals elapsing while the flag passes through the two photogates. From these time intervals and the length of the flag, the computer will calculate the velocities
v1
and
v2
of the cart at each of the photogates. Additionally, from the computer data you can determine the time interval
Δt
it takes for the cart to travel between the photogates. The acceleration
a
between the two gates can then be calculated from
( 10 )
a =
v2v1
Δt

where
v1
is the velocity at the first photogate, and
v2
is the velocity at the second photogate.

Setting up the equipment

1
Using the adjusting screws underneath level the track so that the cart does not move when placed by itself in the center of the track. Since the cart has some friction, test to see if the track is level by giving the cart a slight nudge to the right and comparing the motion with a similar push to the left.
2
Place the photogates sufficiently far apart. Make sure the cart's flag is before the first gate when the hanger is all they way up near the pulley as shown in Fig. 3a. Also, make sure the cart's flag passes the second photogate before the hanger hits the ground. See Fig. 3b. This will ensure that the cart is being accelerated in the region between the two photogates.
3
Adjust the height of each photogate so that the small metal flag on the cart blocks the photogate light beam as it passes.
Figure 3

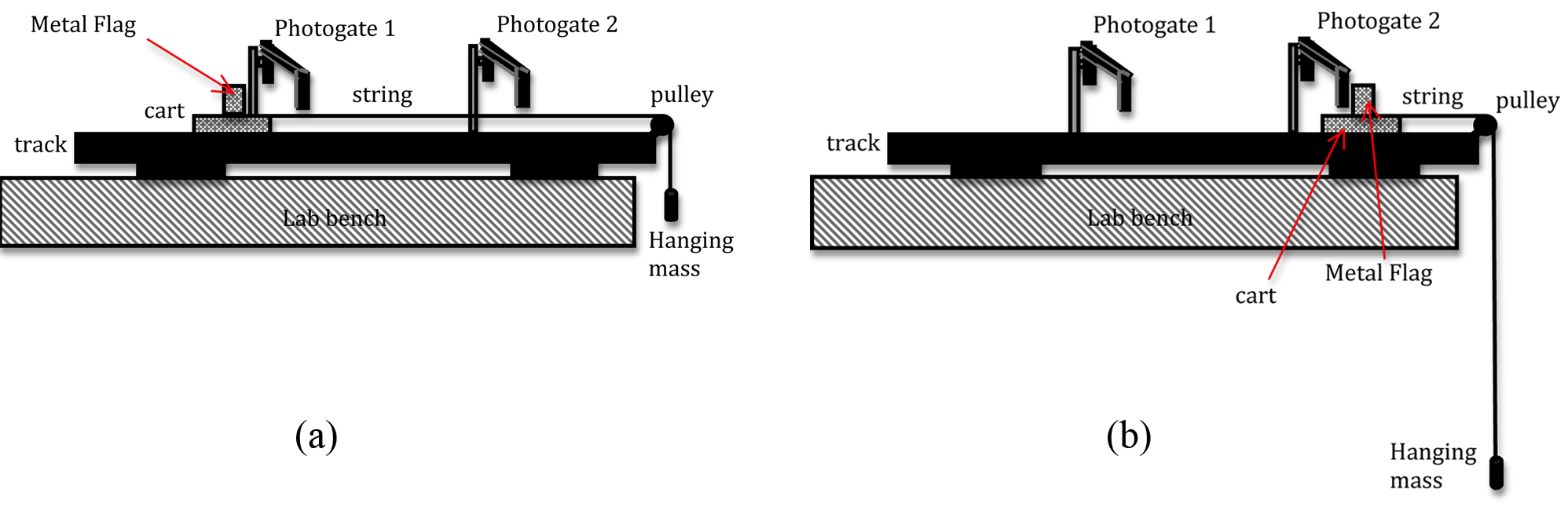

Figure 3: Photogate set-up

Figure 4

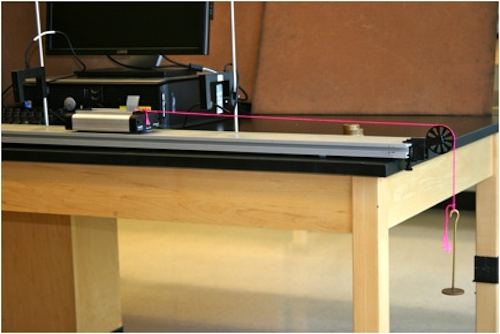

Figure 4: Experimental set-up

4
Connect photogate 1 to digital channel 1 and photogate 2 to digital channel 2. If the photogates are plugged in properly, the red LED on the photogate will light up when the infrared beam is blocked.
5
Open the appropriate DataStudio file associated with this lab. Fig. 5 shows the opening screen in DataStudio.
Figure 5

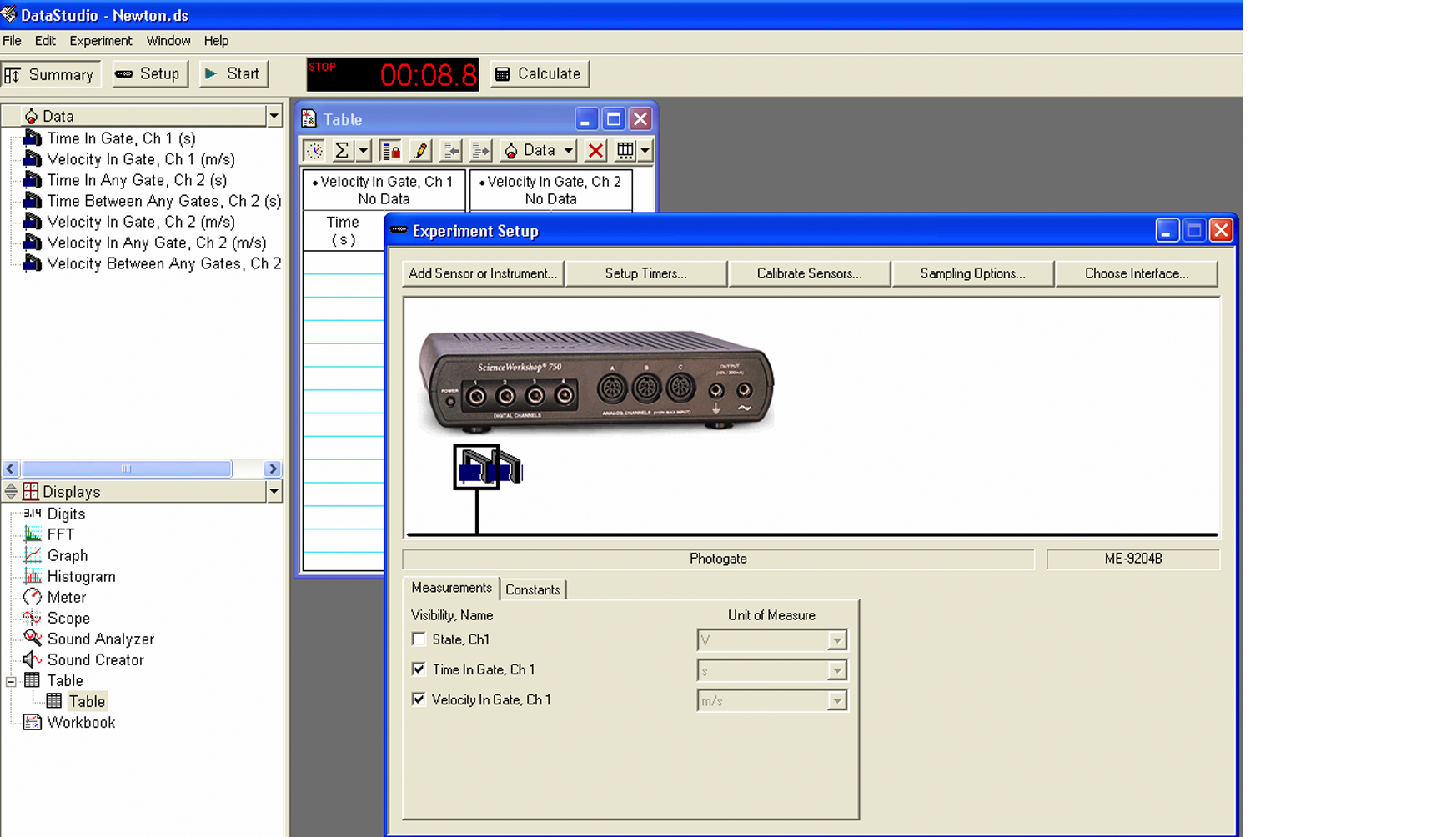

Figure 5: Newton's second law display

6
The length
c
of the small metal flag on the cart is different for each cart. Measure
c
for your cart and record it on the worksheet.
7
You must input the value of the flag length
c
In the Experiment Setup window, click the Constants tab as shown in Fig. 6. Enter the flag length in the box with that label.
Important: The flag length must be entered for both photogates! You can select a different photogate by clicking on it in the Experiment setup window.
Figure 6

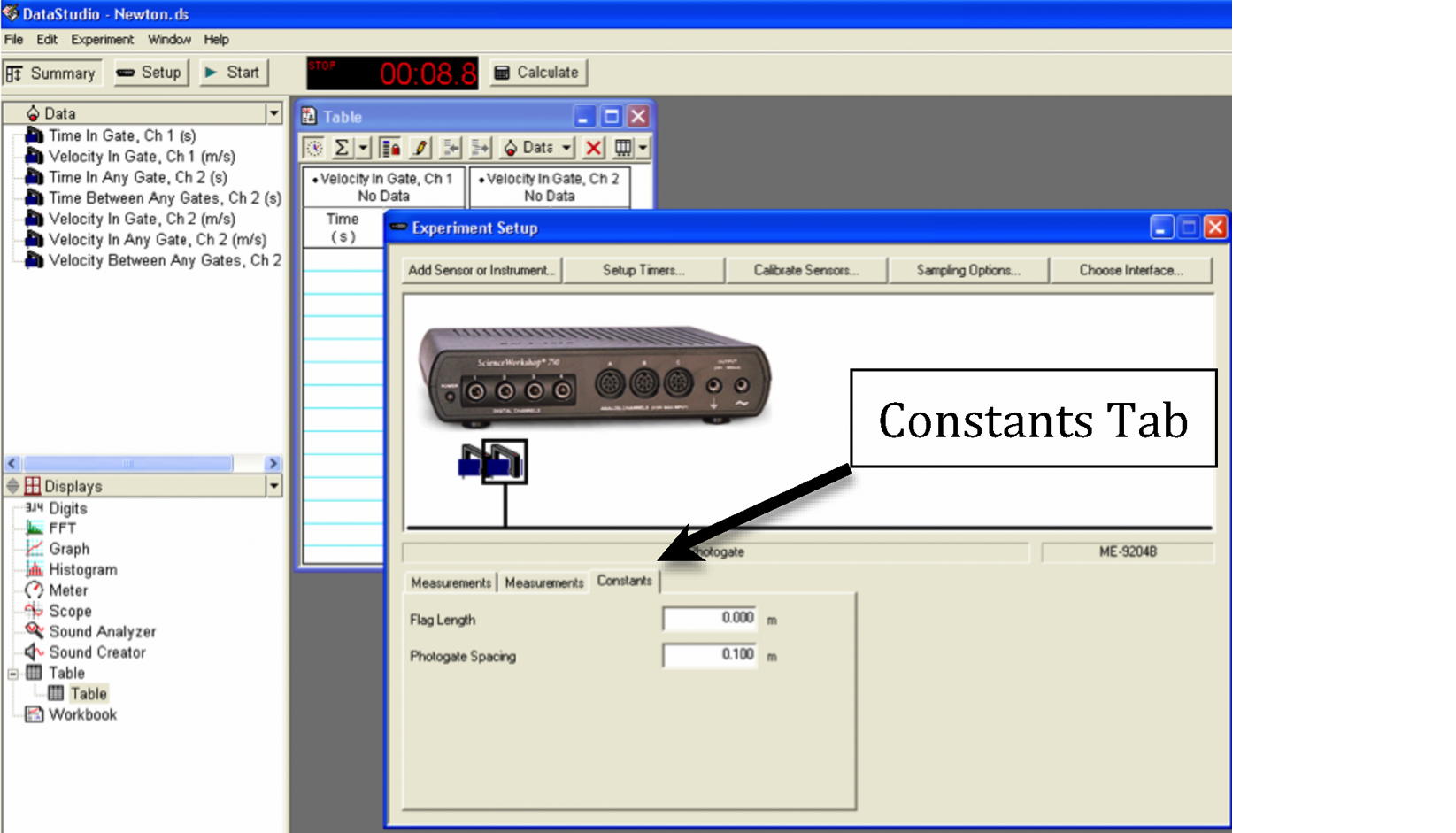

Figure 6: Entering the flag length

Data Aquisition

8
Place the cart at the end of the track away from the pulley. Add three 50-gram masses to the cart.
9
Weigh the weight hanger, and record the mass
Mh
on the worksheet.
10
Connect one end of the string to the weight hanger and the other end to the cart, placing the string over the pulley. See Fig. 3.
11
Hold the cart in position so that the cart will accelerate when released. When ready to record data, click the Start button. Release the cart and catch it when it reaches the end of the track. Click the Stop button to end data recording. The time and speed data for each photogate will be reported automatically in the Table. See Fig. 7.
Figure 7

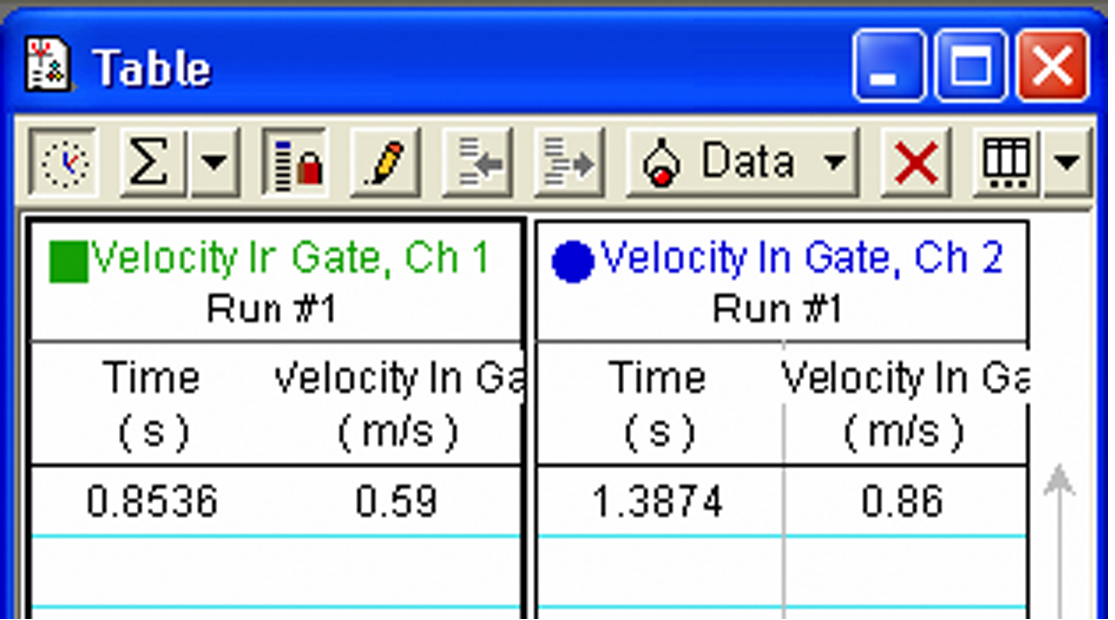

Figure 7: Sample data table

12
The cart's speed increases smoothly during the time interval while the flag passes through the photogate beam. At some instant during that time interval the cart's instantaneous speed equals the average speed for the interval. That instant of time is shown in the "Time(s)" column next to its associated velocity.
13
The time it took for the cart to travel between photogates 1 and 2 is
Δt
This is calculated by subtracting the time value in the column labeled Velocity in Gate, Ch 1 from the time value in the column labeled Velocity in Gate, Ch 2.
Calculate
Δt
and record this in Data Table 1 on the worksheet.
14
Use this time interval together with the two velocities
v1
and
v2
in Eq. (10)
a =
v2v1
Δt

 to calculate the acceleration of the cart between the two photogates and record this result in Data Table 1.
15
Move one 50-gram mass from the cart to the weight hanger. Note: You must keep the total mass constant, so any mass removed from the cart must be added to the weight hanger.
16
Repeat steps 11 through 15 three more times, until you have a total of four runs with a different value of the hanging mass for each run. Calculate and record the acceleration for each case.
Checkpoint 1:
Ask your TA to check your table values before proceeding.

Analyzing the Results

17
Using Excel plot
m1g
versus
a
See Appendix G.
18
Use the Linest function in Excel to calculate the slope, y-intercept and their associated uncertainties. See Appendix J. Record these values on the worksheet.
19
From the values of the slope and its uncertainty determine the total mass of the system and the uncertainty ΔM in the total mass of the system.
20
Calculate the percent uncertainty in the total mass and record this on the worksheet. See Appendix B.
21
Use a balance to measure the mass of the cart. Add this to the mass of the weight hanger and the added masses to find the total mass
M
of the system.
22
Calculate the percent uncertainty in the measured total mass and record this on the worksheet.
23
Compare this measured mass to the mass determined from the slope of the graph by calculating the percent difference. Record this on the worksheet. See Appendix B.
Checkpoint 2:
Ask your TA to check your Excel worksheet and graph.
